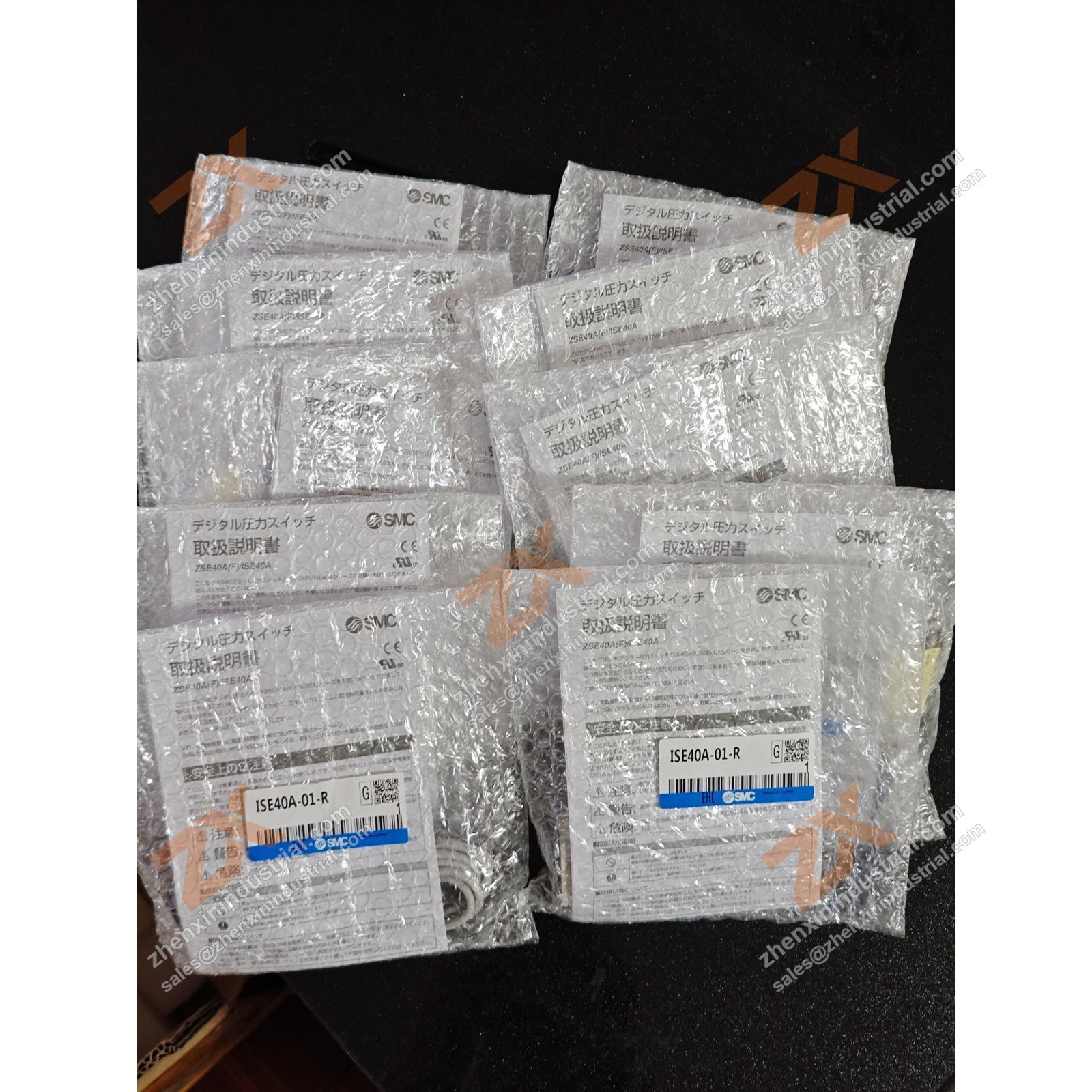

ISE40A-01-R

Product information

Product Overview

SMC lists ISE40A-01-R under ISE40A Series 2-Color Display Digital Pressure Switch For positive pressure. The manufacturer’s own product-number check resolves this exact part number and returns the configuration breakdown below, so every code position on the label can be matched against SMC’s published data before the part is ordered.

The manufacturer’s description of the series, its official configuration breakdown, the associated maintenance part numbers and any lifecycle notice are reproduced below in full and unchanged.

Why Buyers Specify This Model

This is how SMC itself describes the series this part number belongs to:

• Applicable fluid: Air, Non-corrosive gas, Non-flammable gas
• Simultaneous copying is possible for maximum 10 units
• 3-step setting
• With One-touch fitting

These points are reproduced from SMC’s own description of the series this part number belongs to. They are the manufacturer’s claims, not our interpretation.

Technical Specifications (Official SMC Data)

SMC’s product-number check returns the following configuration for ISE40A-01-R. Each row is one position of the part number, exactly as SMC publishes it.

Code position	Value	Official meaning
Porting Specifications	01	R1/8 (With M5 Female Threaded)
Output Specification	R	NPN Open Collector 2 Outputs + Analog Voltage/Auto-Shift Switching
Remote Sensor Unit	–	With Display Unit Switching Function
Option 1	–	None
Option 2	–	Operation Manual:-;Calibration Certificate:-
Made To Order	–	Standard

Source: SMC official product number check for ISE40A-01-R. Values are reproduced unchanged; they are not converted, rounded or paraphrased.

Ordering Information

Item	Official data
Manufacturer	SMC Corporation
Full part number	ISE40A-01-R
Official series	ISE40A Series 2-Color Display Digital Pressure Switch For positive pressure

A complete SMC part number must be ordered. SMC’s product-number check only resolves the part number in full: dropping a suffix such as the port size or the electrical entry produces a code the manufacturer does not list, so the description above should be used to confirm every position before ordering.

Lifecycle and Availability

SMC’s product-number check for ISE40A-01-R carries no discontinuation notice, so the manufacturer is not flagging this part number as end-of-life at the time of writing.

Availability, lead time and stock are commercial matters. We confirm them against SMC’s current supply position for the exact part number you need – please send an enquiry rather than assuming the part is on the shelf.

Official Documentation

Every value on this page can be verified against SMC’s own documentation. The links below go directly to the manufacturer:

Document	Official link
SMC official product number check for ISE40A-01-R	https://www.smcworld.com/webcatalog/s3s/en-jp/detail/?partNumber=ISE40A-01-R

Ordering This Part

Send us the full part number ISE40A-01-R together with the quantity, and we will come back with price, lead time and shipping. Partial part numbers cannot be quoted, because SMC lists each configuration under its own part number.

If your drawing or bill of materials shows a different part number for the same function, send that as well – we will check it against SMC’s data and tell you what the difference is before you commit.

Frequently Asked Questions

How do I read the part number ISE40A-01-R?

SMC’s product-number check breaks the code down position by position. The breakdown is reproduced in full in the Technical Specifications table above, including what each letter and figure means.

Is ISE40A-01-R still available?

SMC’s product-number check returns this part number without a discontinuation notice at the time of writing. Stock and lead time are confirmed per order, so please enquire rather than assume availability.
