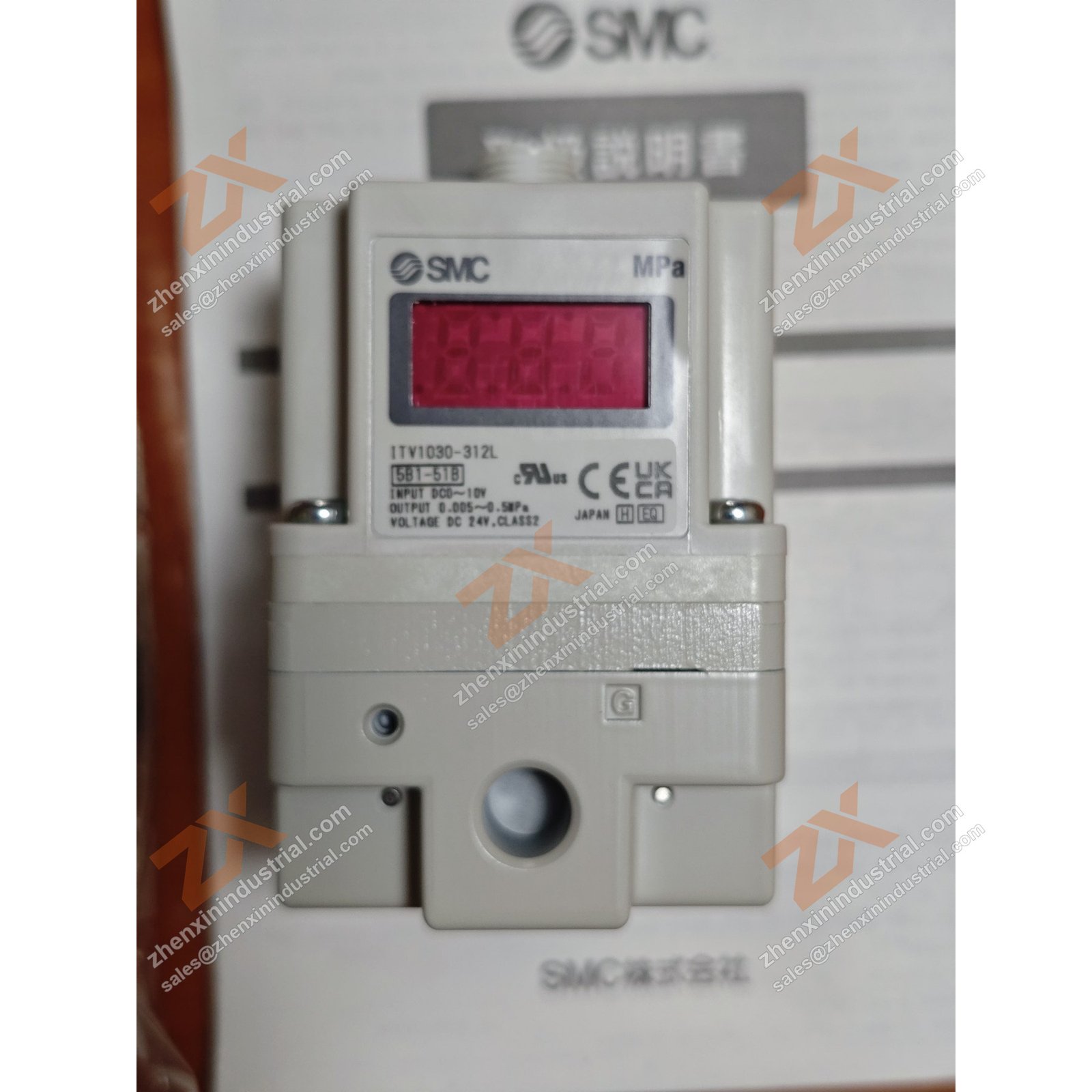

ITV1030-312L

Product information

Product Overview

SMC lists ITV1030-312L under ITV1000/2000/3000 Series Electro-pneumatic Regulator. The manufacturer’s own product-number check resolves this exact part number and returns the configuration breakdown below, so every code position on the label can be matched against SMC’s published data before the part is ordered.

SMC files this part under the catalogue entry Electro-Pneumatic Regulator (official series page ITV-D-E).

The manufacturer’s description of the series, its official configuration breakdown, the associated maintenance part numbers and any lifecycle notice are reproduced below in full and unchanged.

Why Buyers Specify This Model

This is how SMC itself describes the series this part number belongs to:

• Stepless control of air pressure in proportion to electric signals
• Sensitivity: 0.2 kPa (100 kPa specification)
• Linearity: ±1% or less (F.S.)
• Hysteresis: 0.5% or less (F.S.)
• Communication: CC-Link, DeviceNetTM, PROFIBUS DP, RS-232C

These points are reproduced from SMC’s own description of the series this part number belongs to. They are the manufacturer’s claims, not our interpretation.

Technical Specifications (Official SMC Data)

SMC’s product-number check returns the following configuration for ITV1030-312L. Each row is one position of the part number, exactly as SMC publishes it.

Code position	Value	Official meaning
Type	1	1000 type
Pressure Range	3	0.5 MPa
Power Supply Voltage	0	24 VDC
Input Signal	3	Voltage Type 0 To 10 VDC
Monitor Output	1	Analog Output 1 To 5 VDC
Thread Type	–	Rc
Port Size	2	1/4
Bracket	–	Without Bracket
Cable connector	L	Right angle type 3 m
Pressure display unit	–	MPa
Made To Order	–	Standard
CE-compliant	–	Standard Type

Source: SMC official product number check for ITV1030-312L. Values are reproduced unchanged; they are not converted, rounded or paraphrased.

Series Specifications (Official SMC Data)

SMC publishes the following series comparison data for the ITV-D-E family. It shows what the manufacturer states for each series in the family, so the values can be compared across sizes.

Series	Port size	Set pressure (MPa)
ITV0000	Built-in One-touch fitting / φ4，φ5/32	0.001 to 0.1 / 0.001 to 0.5 / 0.001 to 0.9
ITV1000	1/8，1/4	0.005 to 0.1 / 0.005 to 0.5 / 0.005 to 0.9
ITV2000	1/4，3/8	0.005 to 0.1 / 0.005 to 0.5 / 0.005 to 0.9
ITV3000	1/4，3/8，1/2	0.005 to 0.1 / 0.005 to 0.5 / 0.005 to 0.9

Source: SMC official series page for ITV-D-E.

Ordering Information

Item	Official data
Manufacturer	SMC Corporation
Full part number	ITV1030-312L
Official series	ITV1000/2000/3000 Series Electro-pneumatic Regulator
Catalogue entry	Electro-Pneumatic Regulator
Official series page	ITV-D-E
Port Size	2 – 1/4

A complete SMC part number must be ordered. SMC’s product-number check only resolves the part number in full: dropping a suffix such as the port size or the electrical entry produces a code the manufacturer does not list, so the description above should be used to confirm every position before ordering.

Official related and replacement parts

SMC lists the following associated parts for this product. They are the manufacturer’s own part numbers for maintenance items.

Part number	Part name
P398020-500-3	Power Supply Cable
P398020-501-3	Power Supply Cable

Lifecycle and Availability

SMC’s product-number check for ITV1030-312L carries no discontinuation notice, so the manufacturer is not flagging this part number as end-of-life at the time of writing.

Availability, lead time and stock are commercial matters. We confirm them against SMC’s current supply position for the exact part number you need – please send an enquiry rather than assuming the part is on the shelf.

Official Documentation

Every value on this page can be verified against SMC’s own documentation. The links below go directly to the manufacturer:

Document	Official link
Series Variations/Pressure Control Equipment	https://www.smcworld.com/catalog/BEST-Guide-en/pdf/PressureControlEQP-GUIDE_en.pdf
Electro-Pneumatic Regulator Application Examples	https://www.smcworld.com/catalog/SMC-HP-PDF/P-E22-25-ITV.pdf
Official SMC document	https://www.smcworld.com/upfiles/pl/M-E03-3-01.pdf
Official SMC document	https://www.smcworld.com/upfiles/pl/M-E03-3-09.pdf
SMC official series page for ITV-D-E	https://www.smcworld.com/webcatalog/en-jp/series/ITV-D-E
SMC official product number check for ITV1030-312L	https://www.smcworld.com/webcatalog/s3s/en-jp/detail/?partNumber=ITV1030-312L
SMC official operation manuals	https://www.smcworld.com/manuals/en-jp/search?query=itv

Ordering This Part

Send us the full part number ITV1030-312L together with the quantity, and we will come back with price, lead time and shipping. Partial part numbers cannot be quoted, because SMC lists each configuration under its own part number.

If your drawing or bill of materials shows a different part number for the same function, send that as well – we will check it against SMC’s data and tell you what the difference is before you commit.

Frequently Asked Questions

How do I read the part number ITV1030-312L?

SMC’s product-number check breaks the code down position by position. The breakdown is reproduced in full in the Technical Specifications table above, including what each letter and figure means.

Is ITV1030-312L still available?

SMC’s product-number check returns this part number without a discontinuation notice at the time of writing. Stock and lead time are confirmed per order, so please enquire rather than assume availability.

Where can I find spare parts for ITV1030-312L?

SMC lists 2 associated part numbers for this product, including P398020-500-3. They are reproduced in the Ordering Information section above.
