MGPM32-25Z
SMC

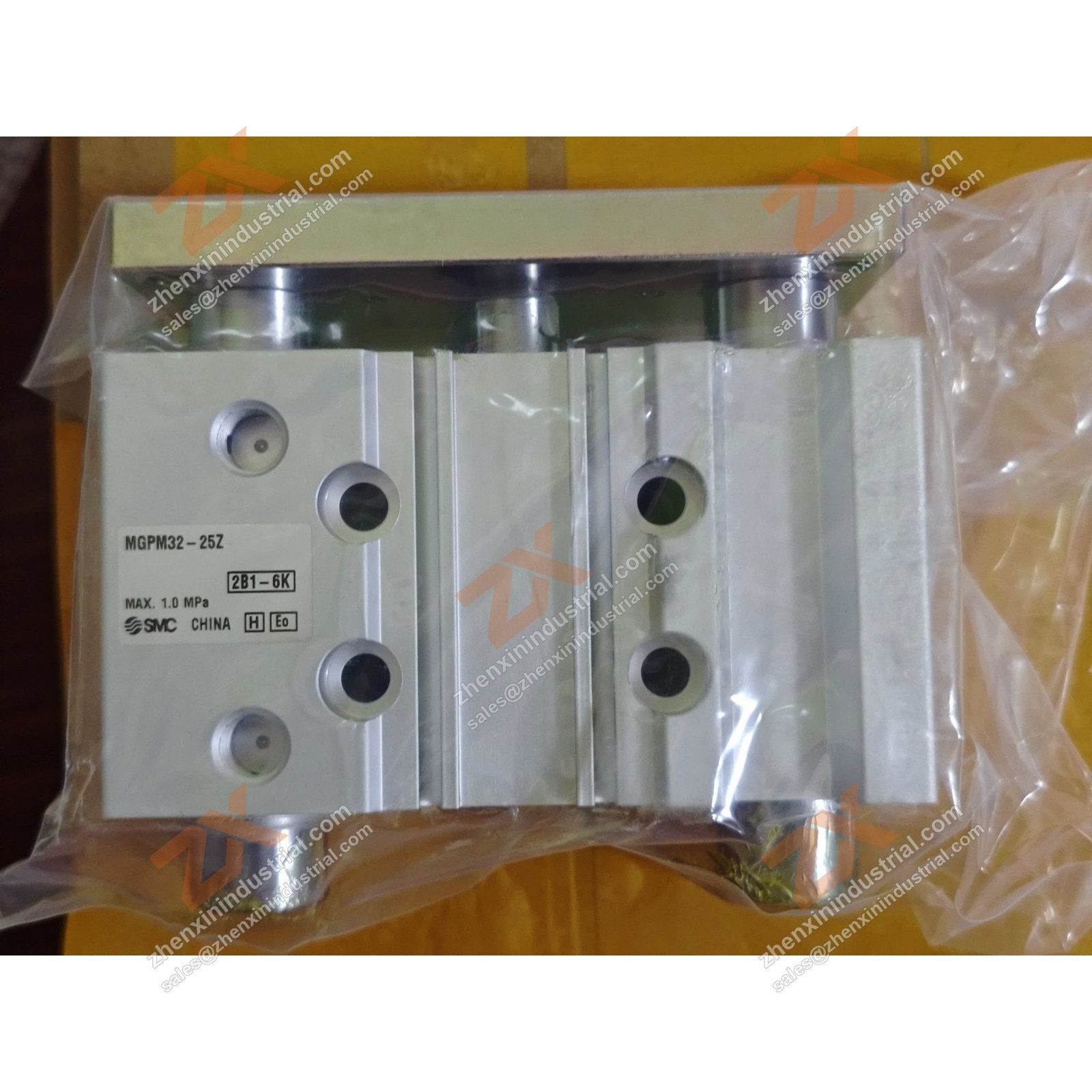

SMC MGPM32-25Z. Reference photograph supplied by Zhenxin Industrial; the image may show the product, its nameplate or labelled packaging. Confirm the complete ordering code, revision, condition and required quantity before quotation.
This page identifies a sourcing reference. It does not guarantee continuous stock. Availability, condition, quantity, lead time, and commercial terms are confirmed after inquiry.
Copy the model and paste it into WhatsApp with your required quantity.
Reference details
- Manufacturer / brand
- SMC
- Model / reference
- MGPM32-25Z
- Series / type
- Confirm against nameplate
- Condition
- Confirm with inquiry
- Quantity
- Confirm with inquiry
- Lead time
- Confirm with inquiry
Product information
Product Overview
SMC lists MGPM32-25Z under MGP-Z Series Compact Guide Cylinder. The manufacturer’s own product-number check resolves this exact part number and returns the configuration breakdown below, so every code position on the label can be matched against SMC’s published data before the part is ordered.
SMC files this part under the catalogue entry Compact Guide Cylinder (official series page MGP-Z-E).
The manufacturer’s description of the series, its official configuration breakdown, the associated maintenance part numbers and any lifecycle notice are reproduced below in full and unchanged.
Why Buyers Specify This Model
This is how SMC itself describes the series this part number belongs to:
- Weight reduced by up to 24% with a shorter guide rod and thinner plate
- Space required between the bottom of the cylinder body and your equipment is reduced because of guide rod shortened max. 22 mm
- Round type and magnetic field resistant auto switches can be mounted directly without spacer
These points are reproduced from SMC’s own description of the series this part number belongs to. They are the manufacturer’s claims, not our interpretation.
Technical Specifications (Official SMC Data)
SMC’s product-number check returns the following configuration for MGPM32-25Z. Each row is one position of the part number, exactly as SMC publishes it.
| Code position | Value | Official meaning |
|---|---|---|
| Bearing Type | M | Slide Bearing |
| Bore Size | 32 | Bore Size 32 mm |
| Port Thread Type | – | M5X0.8(Φ12-16);Rc(Φ20-100) |
| Cylinder Stroke | 25 | Standard Stroke 25 mm |
| Stroke Adjustment Symbol | – | None |
| Auto Switch | – | Without Auto Switch (With Built-in Magnet) *When Made To Order Is XB6 Without Built-in Magnet |
| Number Of Auto Switches | – | 2 pcs. Or None |
| Made To Order | – | Standard |
Source: SMC official product number check for MGPM32-25Z. Values are reproduced unchanged; they are not converted, rounded or paraphrased.
Series Specifications (Official SMC Data)
SMC publishes the following series comparison data for the MGP-Z-E family. It shows what the manufacturer states for each series in the family, so the values can be compared across sizes.
| Type | Bearing | Series | Action | Bore size (mm) |
|---|---|---|---|---|
| Basic type | Slide bearing | MGPM-Z | Double acting | 12，16，20，25，32，40 / 50，63，80，100 |
| Basic type | Ball bushing | MGPL-Z | Double acting | 12，16，20，25，32，40 / 50，63，80，100 |
| Basic type | High-precision ball bushing | MGPA-Z | Double acting | 12，16，20，25，32，40 / 50，63，80，100 |
| With air cushion | Slide bearing | MGPM-AZ | Double acting | 16，20，25，32，40 / 50，63，80，100 |
| With air cushion | Ball bushing | MGPL-AZ | Double acting | 16，20，25，32，40 / 50，63，80，100 |
| With air cushion | High-precision ball bushing | MGPA-AZ | Double acting | 16，20，25，32，40 / 50，63，80，100 |
| Water resistant | Slide bearing | MGPMR-Z | Double acting | 20，25，32，40 / 50，63，80，100 |
| With end lock | Slide bearing/Ball bushing bearing | MGP | Double acting | 20，25，32，40 / 50，63，80，100 |
| Heavy duty guide rod | Slide bearing | MGPS | Double acting | 50，80 |
Source: SMC official series page for MGP-Z-E.
Ordering Information
| Item | Official data |
|---|---|
| Manufacturer | SMC Corporation |
| Full part number | MGPM32-25Z |
| Official series | MGP-Z Series Compact Guide Cylinder |
| Catalogue entry | Compact Guide Cylinder |
| Official series page | MGP-Z-E |
| Bore Size | 32 – Bore Size 32 mm |
| Cylinder Stroke | 25 – Standard Stroke 25 mm |
A complete SMC part number must be ordered. SMC’s product-number check only resolves the part number in full: dropping a suffix such as the port size or the electrical entry produces a code the manufacturer does not list, so the description above should be used to confirm every position before ordering.
Official related and replacement parts
SMC lists the following associated parts for this product. They are the manufacturer’s own part numbers for maintenance items.
| Part number | Part name |
|---|---|
| MGP32-Z-PS | Replacement Parts Seal Kit |
| GR-S-010 | Grease Pack |
Lifecycle and Availability
SMC’s product-number check for MGPM32-25Z carries no discontinuation notice, so the manufacturer is not flagging this part number as end-of-life at the time of writing.
Availability, lead time and stock are commercial matters. We confirm them against SMC’s current supply position for the exact part number you need – please send an enquiry rather than assuming the part is on the shelf.
Official Documentation
Every value on this page can be verified against SMC’s own documentation. The links below go directly to the manufacturer:
Ordering This Part
Send us the full part number MGPM32-25Z together with the quantity, and we will come back with price, lead time and shipping. Partial part numbers cannot be quoted, because SMC lists each configuration under its own part number.
If your drawing or bill of materials shows a different part number for the same function, send that as well – we will check it against SMC’s data and tell you what the difference is before you commit.
Frequently Asked Questions
How do I read the part number MGPM32-25Z?
SMC’s product-number check breaks the code down position by position. The breakdown is reproduced in full in the Technical Specifications table above, including what each letter and figure means.
What bore size is MGPM32-25Z?
SMC’s own breakdown of this part number gives the bore size position as 32 – Bore Size 32 mm.
What stroke does MGPM32-25Z have?
The stroke position of this part number is 25 – Standard Stroke 25 mm, according to SMC’s product-number check.
Is MGPM32-25Z still available?
SMC’s product-number check returns this part number without a discontinuation notice at the time of writing. Stock and lead time are confirmed per order, so please enquire rather than assume availability.
Where can I find spare parts for MGPM32-25Z?
SMC lists 2 associated part numbers for this product, including MGP32-Z-PS. They are reproduced in the Ordering Information section above.
